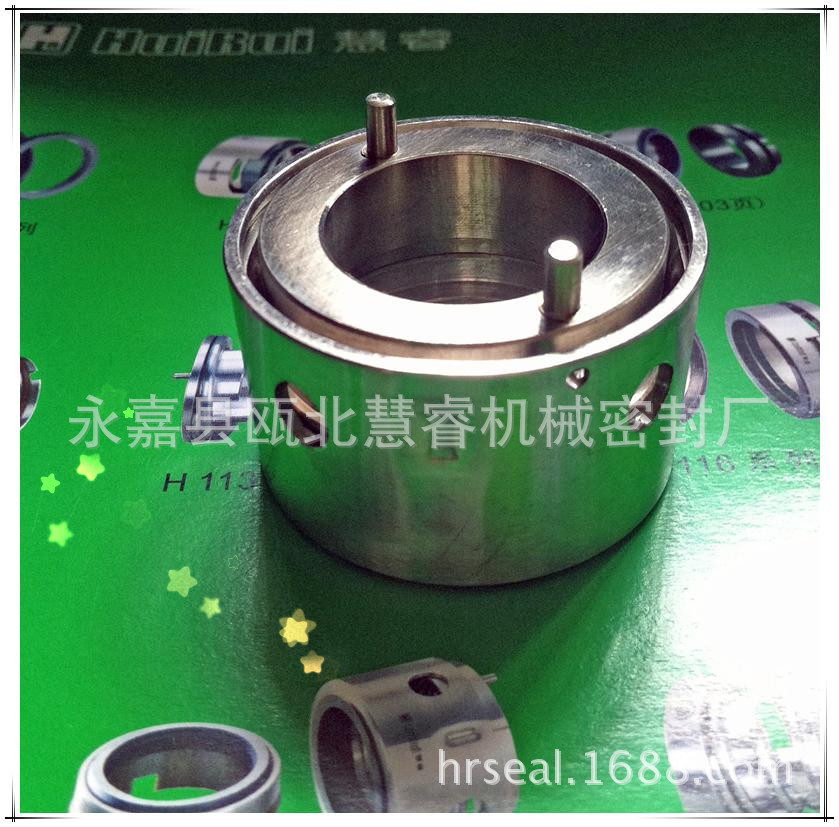

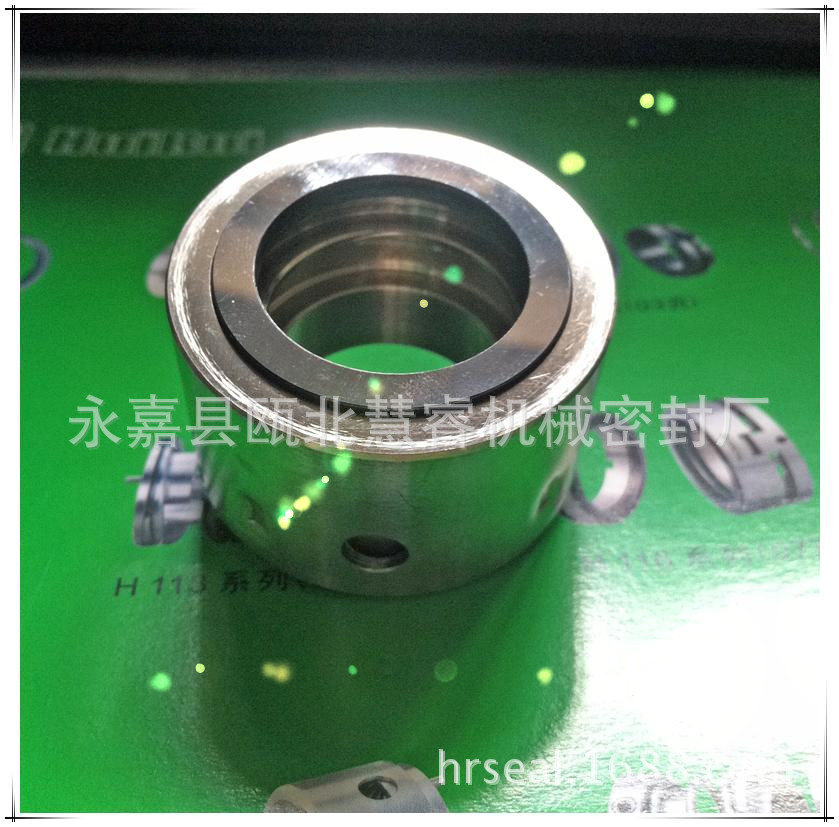

H122-30WWD槽,合金對合金氟膠,靜環帶槽可帶銷,靜環外徑45。
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

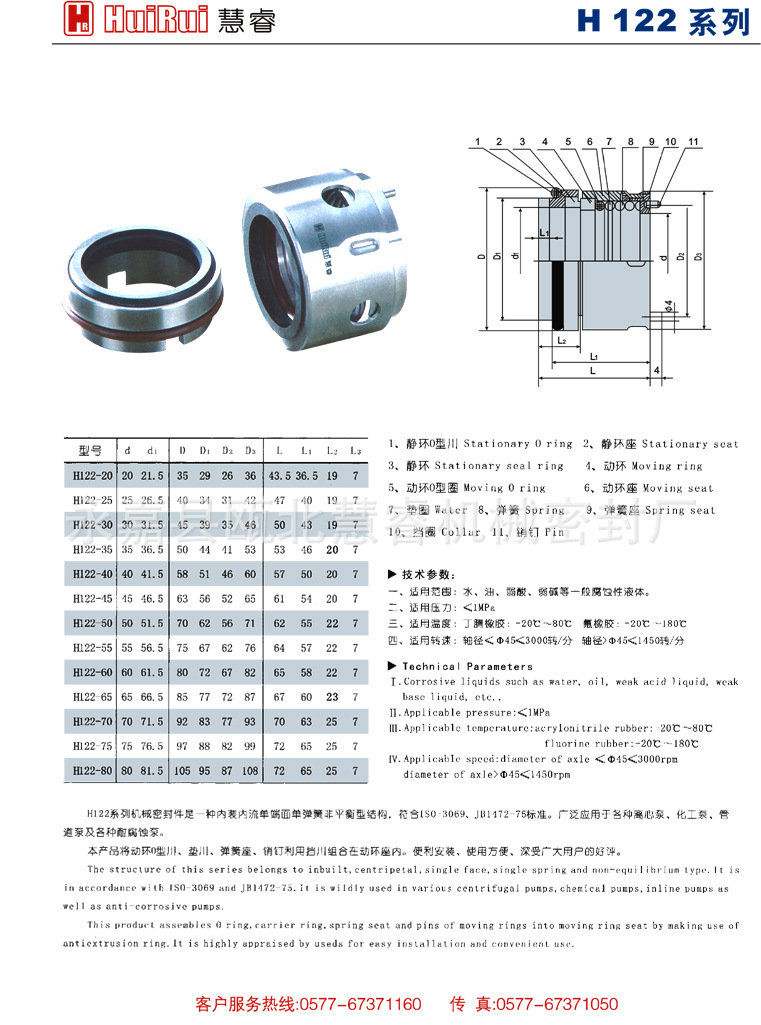

H122系列機型密封件是一種內裝內流單端面單彈簧非平衡型結構，符合標準。廣泛應用于各種離心泵、化工泵、管道泵及各種耐腐蝕泵。
H122系列產品將動環O型圈、墊圈、彈簧座、銷釘利用擋圈組合在動環座內，安裝便利、使用方便、深受廣大用戶的好評。
一、組件
1.靜環
2.靜環O型圈
3.靜環座
4.動環
5.動環O型圈
6.動環座
7.墊圈
8.彈簧
9.彈簧座
10.擋圈
二、技術參數
1.適用范圍：水、油、弱酸堿等一般腐蝕性液體
2.適用壓力：≤1Mpa
3.適用溫度：-20℃~180℃（氟膠）
4.適用轉速：軸徑≤45≤3000r/min
軸徑＞45≤1450r/min
………………………………………………………………………………………………………………………………………………………………
H122 series type sealing device is a kind of non balanced structure, which is
filled with the flow sheet of the inner flow. Widely used in a variety of
centrifugal pumps, chemical pumps, pipeline pumps and a variety of
corrosion-resistant pump.
H122 series products of the moving ring type O
rings, gaskets, spring seat, pin the ring of the moving ring seat, installation
is convenient, use convenient, praised by the majority of users.
One,
component
1 static ring
2 ring O ring
3 static ring seat
4
rings
5 ring O ring
6 moving ring seat
7 washer
8 spring
9 spring
seat
10.
Two, technical parameters
1 scope of application: water, oil,
acid and alkali, and other corrosive liquids
2 apply pressure: less than
1Mpa
3 applicable temperature: -20 ~180 (f)
4 for speed: shaft diameter
less than or equal to 45 3000r/min
Shaft diameter > 45 = 1450r/min
